Rendering Pipeline

The rendering pipeline in Limon is fully configurable through a node-based visual editor. The engine ships with forward and deferred pipeline configurations, but any custom pipeline can be built and loaded at runtime without modifying engine source.

Three types of developer benefit from this system:

• Optimisation-focused -improve performance by adjusting pass ordering, culling parameters, and LOD settings without touching engine code.

• Custom rendering -add post-processing effects, custom shaders, or a completely different shading model, with real-time preview in the editor.

• Learning -isolate individual rendering stages to experiment with GPU programming in a live scene.

The author switched the engine to deferred rendering in under a day using this system.

Pipeline Editor

The pipeline editor is accessible from within the editor UI. Every available GLSL shader program is discovered automatically via runtime reflection and appears as a node type. Nodes are wired together to define how GPU resources flow between passes. The compiled pipeline is a runtime object executed every frame -the visual graph and the runtime object are always consistent.

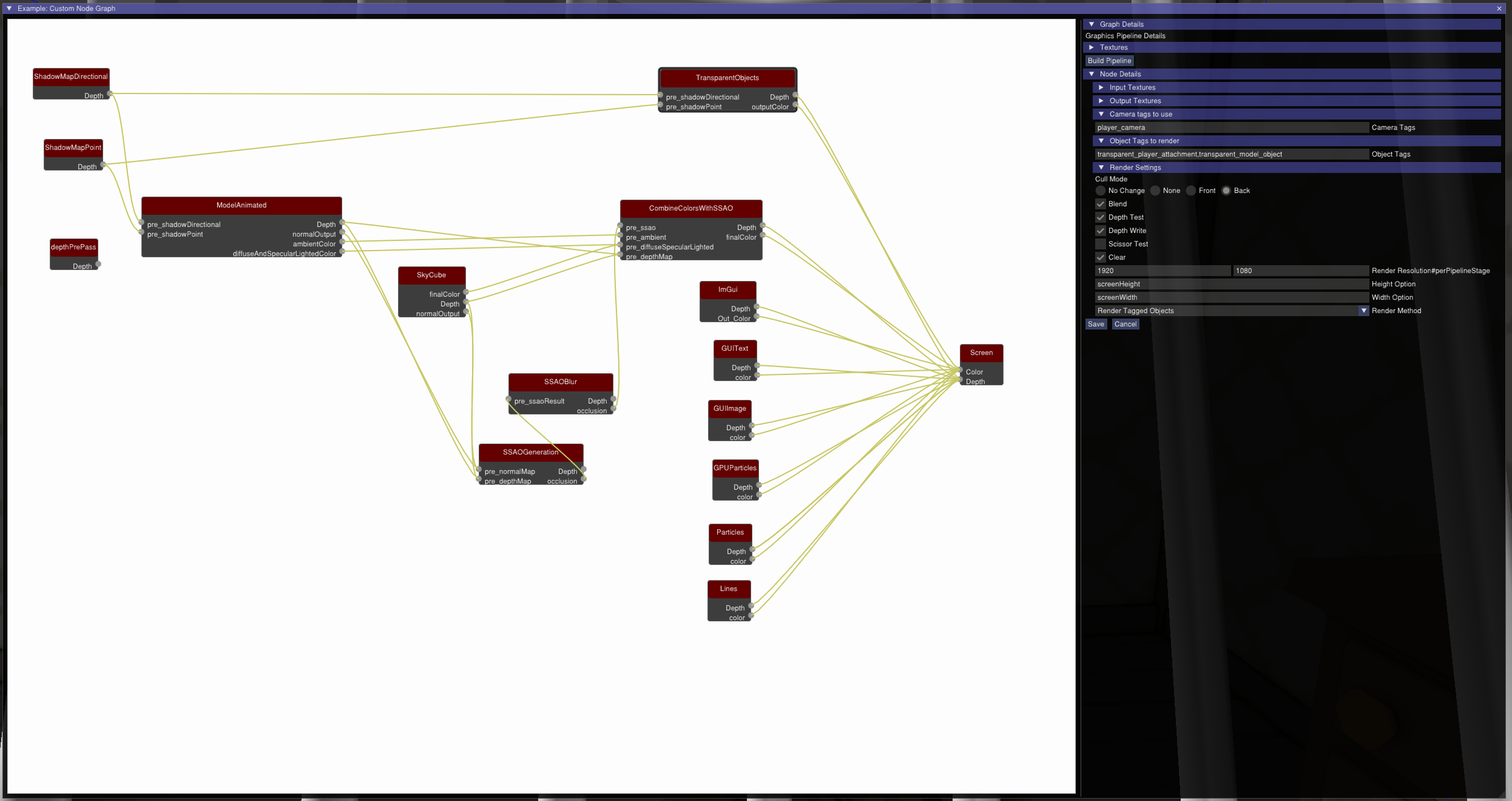

The pipeline node editor with shader nodes wired together.

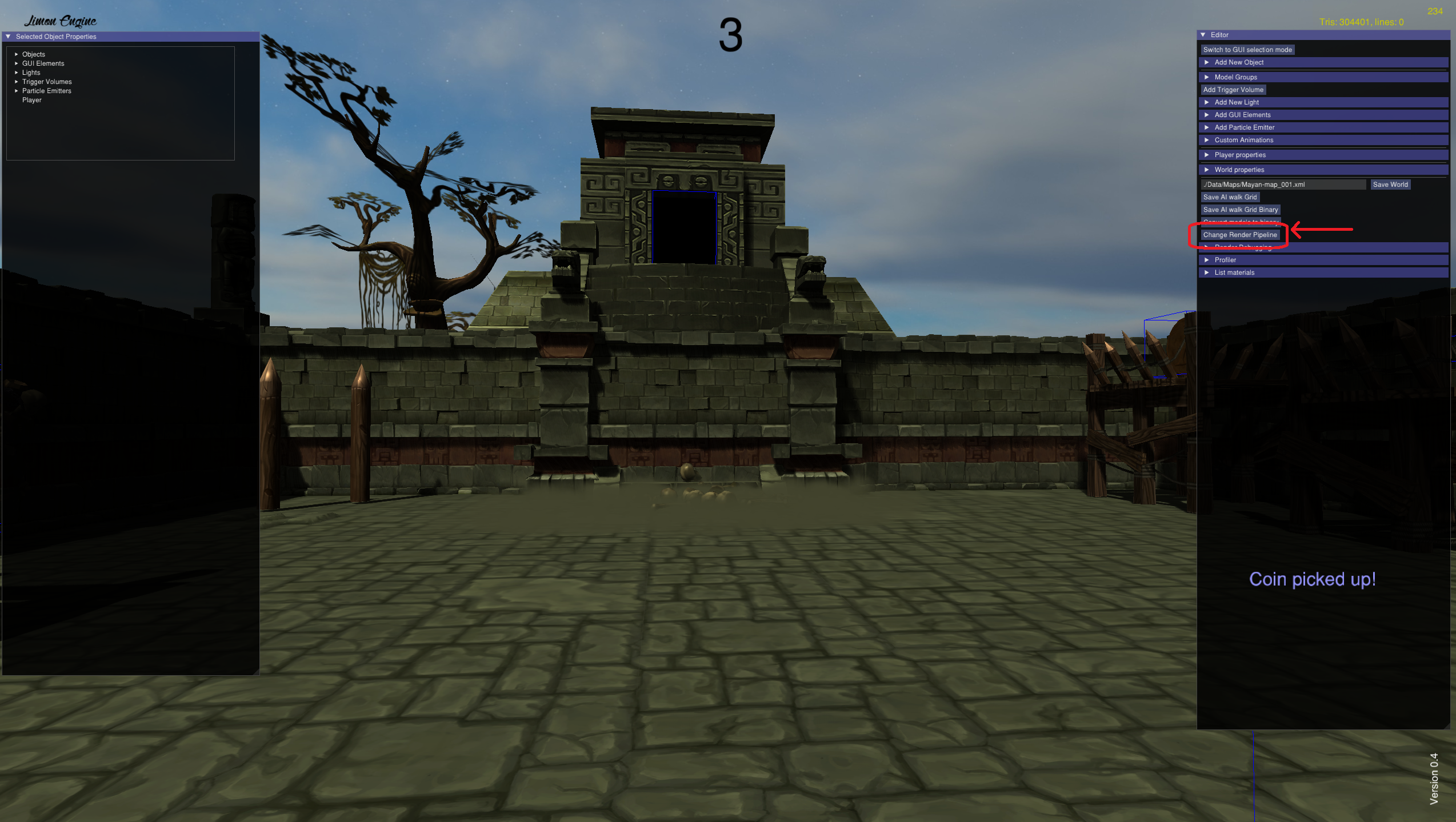

Opening the pipeline editor from within the editor UI.

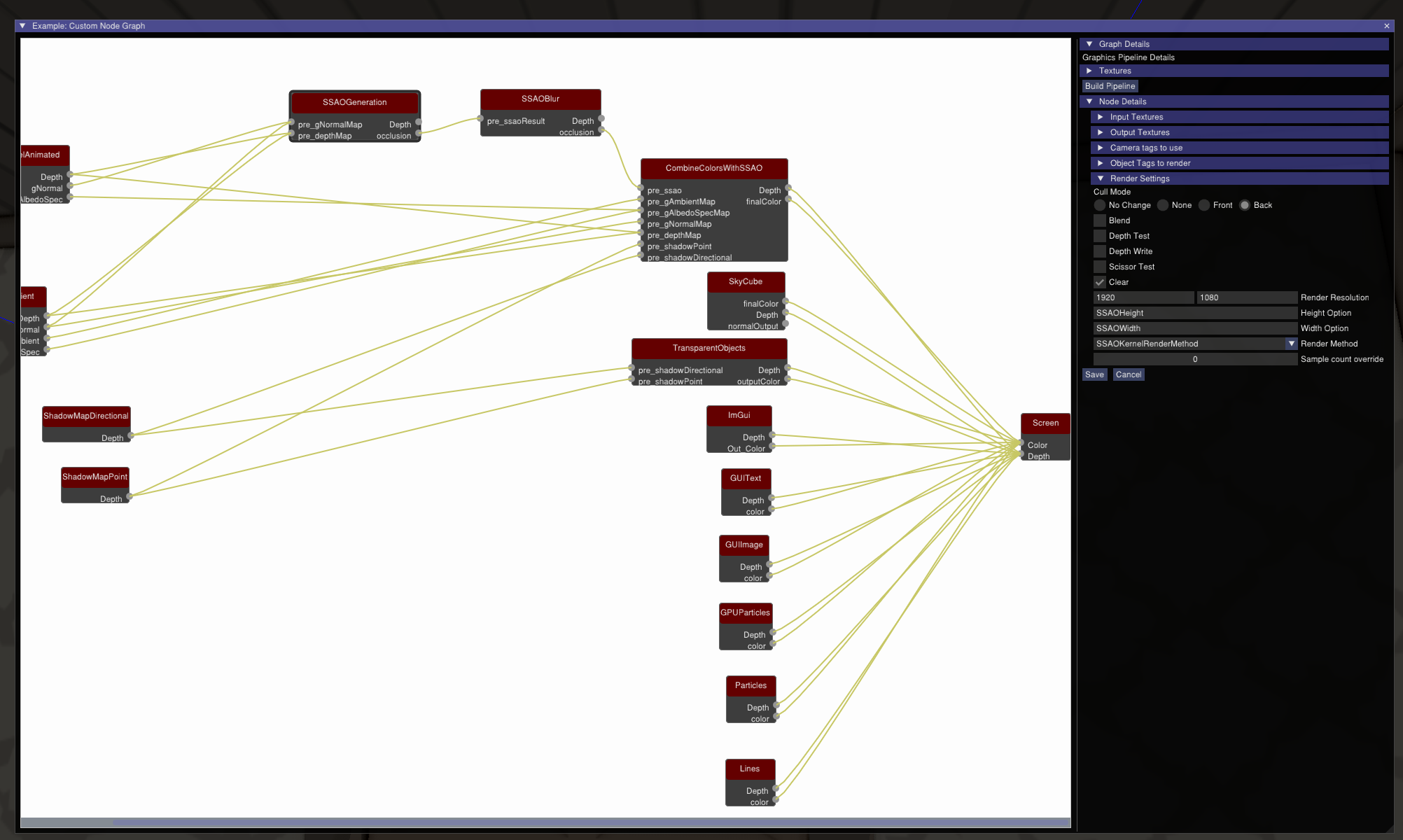

When the renderMethod has parameters to configure, they are exposed on the node.

Nodes and Wiring

Each node represents a rendering pass. Inputs and outputs on each node are discovered automatically from the shader source via reflection -no manual registration required. Outputs from one node connect to inputs of another to define GPU resource flow.

The Screen node is the terminal -the final colour output must be wired to it.

Each node has two configuration fields beyond wiring:

• RenderMethod -selects which RenderMethod renders geometry through this shader pass. See RenderMethod Extension Point below.

• Camera name -names which camera’s culling results this pass uses. Multiple cameras with independent culling results are supported.

When the selected RenderMethod exposes configurable parameters, those parameter widgets appear on the node directly beneath the RenderMethod field. The values are saved with the node graph and the runtime pipeline -see RenderMethod Extension Point below.

The pipeline editor performs automatic stage reordering at compile time -passes are ordered for correctness based on their dependency graph.

Built-in Pipeline Configurations

Two configurations ship with the engine:

• Forward -single-pass geometry rendering with direct lighting. Lower memory usage.

• Deferred -geometry and lighting decoupled across passes. Scales better with many lights.

A custom pipeline can be loaded at runtime from a file (C++ | Python):

changeRenderPipeline(pipelineFileName)

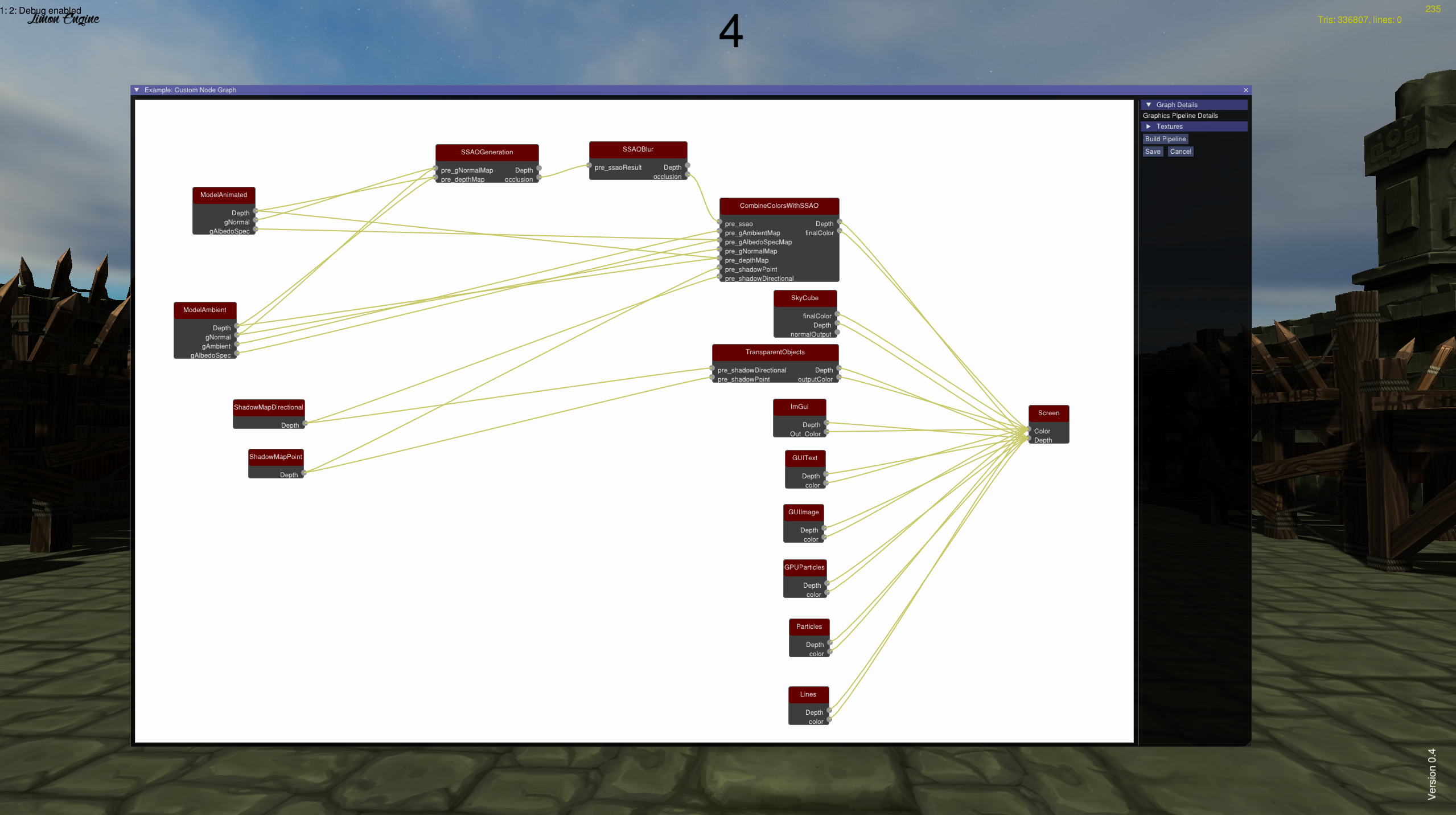

The deferred pipeline with all nodes and wiring visible.

Filtering Pipeline

Each rendering pass applies four sequential visibility filters. With multiple cameras in the pipeline (player camera, shadow map cameras), each camera runs its culling workload on a separate thread concurrently.

1. Tag filtering -each camera and each scene object carries a tag. The pass specifies which camera tags render which object tags. Tags are converted to uint128 hashes at pipeline load for zero-cost matching at runtime.

2. Frustum culling -objects outside the camera’s view volume are discarded. Point lights use sphere-based culling rather than frustum culling -a point light illuminates in all directions, and a frustum test would incorrectly cull lights behind the camera that still illuminate visible geometry.

3. Occlusion culling -a SIMD software depth buffer on the CPU. Objects above a configurable size threshold act as occluders; smaller objects are tested against the depth buffer. See SIMD Software Occlusion Culling below.

4. LOD selection -the appropriate level-of-detail mesh is selected based on the object’s projected screen-space size and the engine-wide LOD settings.

Tagging

The engine automatically tags objects: animated, static, transparent, and others. Tags are freely changeable in the editor. Custom pipeline configurations target specific tags -enabling per-tag custom shaders or custom passes for specific object categories.

Built-in Shaders

The following shader programs ship with the engine and appear as node types in the pipeline editor. Custom shaders placed in the shader directory are discovered automatically via the same reflection.

Shader	Description
Directional shadow map generation	Cascaded shadow map generation for directional lights.
Point shadow map generation	Cube map shadow generation for point lights.
Static model	Standard mesh render pass.
GPU skinning model	Skeletal mesh render pass with GPU-side skinning.
Transparent model pass	Alpha-blended geometry pass.
SSAO generation	Screen-space ambient occlusion -implemented as a sample custom RenderMethod.
SSAO blur	Depth-aware blur for SSAO output.
Combine shading	Composites lighting contributions across passes.
GUI	Renders GUI elements.
Editor	Renders editor overlays.
Sky	Skybox render pass.

RenderMethod Extension Point

RenderMethod is the fifth user-layer extension point. It is a custom GPU rendering primitive instantiated and wired in the pipeline editor. Like all five extension types, it is scanned from the user dynamic library at engine launch.

Method	Description
getName	Returns the method name for the editor dropdown.
getParameters	Pure virtual. Returns the method’s GenericParameter list - each entry carrying both its descriptor (request type, description, value type) and its value. Drives both the editor widgets and persistence.
initRender	Called at pipeline load. Receives the GPU program and the configured GenericParameter list. Set up GPU resources here.
renderFrame	Called each frame. Receives the GPU program pointer.
cleanupRender	Tears down GPU resources on pipeline unload or reconfiguration. Receives the GPU program and the GenericParameter list.

The GenericParameter list returned from getParameters() automatically appears as editable fields on the shader node in the pipeline editor -no separate editor code required. RenderMethod is part of the unified parameter contract, with one difference from the other extension points: its configured values are persisted in two places.

• nodeGraph.xml - the editor’s node graph. The values you set on the node are saved here so they survive editing sessions and reopen with the node.

• renderPipeline.xml - the runtime pipeline. The values are also written here so the compiled pipeline can apply them when it runs, independently of the editor graph.

Both persistence points use the same <Parameter> element format as the rest of the engine, so a RenderMethod’s configuration round-trips through the editor and the runtime identically.

Two built-in RenderMethods ship with the engine:

• Render By Tag -the primary RenderMethod for all 3D geometry. Uses a named camera’s culling results and a tag filter. Used by static model, GPU skinning model, and transparent pass nodes.

• Quad Renderer -convenience RenderMethod for post-processing passes. Full-screen quad, no geometry iteration.

SSAO ships as a sample RenderMethod, demonstrating GenericParameter configuration (sample count) and full-screen post-processing. It is a good starting point for custom effects.

Materials and the Pipeline

All materials are uploaded to the GPU as a Uniform Buffer Object (UBO). A material index is passed per instance as part of instanced rendering data. Any shader that declares the material UBO is automatically detected via reflection - no registration required. Custom pipeline shaders receive the full material array by declaring the UBO.

For how materials are created, edited, and managed see Using Builtin Editor and Asset Management.

Performance Systems

Targeting integrated GPU hardware motivates a significant CPU-side visibility investment. Draw call overhead is more expensive on iGPU than on discrete GPU -reducing the objects submitted for rendering produces a larger framerate gain than the same reduction would on dedicated hardware. All culling systems run multithreaded, with each camera’s workload on a separate thread.

SIMD Software Occlusion Culling

A software depth buffer produces per-camera visibility results consumed by Render By Tag passes.

• Depth buffer based, AABB occludee testing

• Default resolution 512x256 -must be a multiple of 8 for SIMD alignment, configurable

• SSE4.1 on x86, NEON on AArch64 -covers Apple Silicon and Raspberry Pi 4/5

• A debug AABB wireframe picture-in-picture overlay is available in the editor

Level of Detail

LOD mesh generation is automatic via meshoptimizer. Every model gets 4 LOD levels: 3 progressive simplifications plus the original mesh.

• LOD selection is engine-wide -not configurable per model

• Aggressive LOD settings can produce visible pop-in -tune the LOD option for your scene

Size-Based Render Skipping

Objects below a projected screen-space size threshold are skipped entirely -not submitted for rendering. This is a binary skip, independent from LOD. The threshold is an engine-wide option.

Lighting

• Directional light with cascaded shadow maps. Each cascade uses a tight-fitting, texel-snapped orthographic view derived from the player view frustum and the CascadeLimitList boundaries -no manual projection extents required. lightOrthogonalProjectionBackOff controls how far behind the camera the light origin is pulled to capture shadow casters behind the player. Staggered cascade rendering is optional (~10% performance gain).

• Point lights with cube map shadow casting.

• Ambient lighting.

• Lights are creatable and removable at runtime via addLight / removeLight (Python: add_light / remove_light).

• No global illumination -direct lighting with shadow maps only.

Configuration Reference

All options live in ./Engine/Options.xml. The file is read at launch; restart the engine after editing.

Display

Option	Type	Default	Description
screenWidth	Long	2560	Render width in pixels.
screenHeight	Long	1440	Render height in pixels.
fullScreen	Bool	False	Run in fullscreen mode.
TextureFiltering	String	Trilinear	Texture filtering mode. Values: Nearest, Bilinear, Trilinear.

Rendering Pipeline

Option	Type	Default	Description
GraphicsBackend	String	libOpenGLGraphicsBackend	Dynamic library name for the graphics backend. Change to swap OpenGL 3.3 for OpenGL ES 3.1 or a custom backend.
StartingRenderPipeline	String	./Engine/forward_+renderPipeline.xml	Pipeline configuration file to load at launch.
renderInformations	Bool	True	Show render stats overlay.

Shadows

Option	Type	Default	Description
shadowMapDirectionalSize	Long	2048	Directional shadow map resolution (square).
shadowMapPointWidth	Long	512	Point light shadow cube map width.
shadowMapPointHeight	Long	512	Point light shadow cube map height.
DirectionalShadowSampleCount	Long	8	PCF sample count for directional shadows.
PointShadowSampleCount	Long	20	PCF sample count for point light shadows.
CascadeCount	Long	4	Number of shadow cascade splits.
CascadeLimitList	FloatArray	5, 20, 50, 150, 250	World-space distances for each cascade boundary.
CascadeStaggerIntervals	LongArray	4, 2, 4, 8	Frames between updates for each cascade (cascade 0 always updates). Higher values improve performance but delay shadow response.
CascadeStaggerOffsets	LongArray	4, 1, 2, 4	Frame offset for each cascade’s update schedule. Distributes load to avoid per-frame spikes.
lightOrthogonalProjectionBackOff	Double	-5000	How far behind the player frustum the directional light’s view origin is pulled. Increase to capture shadow casters behind the camera.
lightPerspectiveProjectionNearPlane	Double	1.0	Near plane for point light perspective projection.
lightPerspectiveProjectionFarPlane	Double	100	Far plane for point light perspective projection.

SSAO

Option	Type	Default	Description
SSAOEnabled	Bool	True	Enable screen-space ambient occlusion.
SSAOWidth	Long	2560	SSAO render buffer width.
SSAOHeight	Long	1440	SSAO render buffer height.
SSAOSampleCount	Long	9	Number of SSAO samples per pixel.
SSAOBlurRadius	Long	1	Blur radius applied to the SSAO output.

Culling and LOD

Option	Type	Default	Description
multiThreadedCulling	Bool	True	Run each camera’s culling workload on a separate thread.
LodDistanceList	LongArray	5, 10, 25, 150, 250	World-space distances at which the engine steps down to the next LOD level. Four values for four transitions between the original mesh and 3 simplification levels.
SkipRenderDistance	Double	50.0	Minimum distance before size-based skipping applies. Objects closer than this are never skipped by size.
SkipRenderSize	Double	0.075	On-screen size fraction below which a distant object is skipped entirely. 1.0 = full screen. Only applies beyond SkipRenderDistance.
MaxSkipRenderSize	Double	3.0	World-space size above which an object is never skipped regardless of distance. Prevents large geometry (ground, walls) from disappearing at range.
SoftwareOcclusionOccluderSize	Double	0.5	On-screen size fraction above which an object contributes to the occlusion depth buffer. Objects below this are tested against the buffer instead. 1.0 = full screen, 0.0 = no coverage.
SoftwareOcclusionRenderWidth	Long	512	Occlusion depth buffer width. Must be a multiple of 8.
SoftwareOcclusionRenderHeight	Long	256	Occlusion depth buffer height. Must be a multiple of 8.
SoftwareOcclusionRenderDump	Bool	False	Dump the occlusion depth buffer to a PPM file. Debug use only.
SoftwareOcclusionRenderDumpFrequency	Long	300	Frame interval between depth buffer dumps.
SplitModelToMeshCount	Long	10	When a model has more meshes than this, occlusion tests run per mesh rather than per model.
maximumLights	Long	4	Maximum number of simultaneously active lights. If there is a directional light, it is always active. The engine selects the most relevant point lights up to this limit.

Player

Option	Type	Default	Description
walkSpeed	Vec4	(8, 0, 8)	Per-axis walk speed (X, Y, Z).
runSpeed	Vec4	(12, 0, 12)	Per-axis run speed.
moveSpeed	Vec4	(8, 0, 8)	Per-axis movement speed used by Player Extension.
freeMovementSpeed	Vec4	(0.5, 0.5, 0.5)	Speed in editor free-camera mode.
jumpFactor	Double	7.0	Jump impulse strength.
lookAroundSpeed	Double	-6.5	Mouse look sensitivity. Negative = standard axes.

Debug and Profiling

Option	Type	Default	Description
DebugDrawLines	Bool	False	Enable the debug line draw system globally.
debugDrawBufferSize	Long	1000	Maximum number of lines in a single debug buffer.
Profiler.EnableServer	Bool	True	Enable the embedded Tracy profiling server (flame graph visible in editor).

Further Reading

• New Render System -overview and motivation

• Render Pipeline How-To -filtering and culling internals
